What are the thrust-to-weight ratios of the Super Heavy booster’s 33 Raptor engines compared to Falcon 9’s 9 Merlin engines?

Boosting Performance: A Thrust-to-Weight Ratio Showdown Between Raptor and Merlin 🚀

Hey there, rocket enthusiasts! 🚀 Today, we're going to dive into the fascinating world of rocket engines and explore the thrust-to-weight ratios of the Super Heavy booster's 33 Raptor engines compared to the Falcon 9's 9 Merlin engines. As SpaceX continues to push the boundaries of space technology, understanding the performance of its engines is crucial for optimizing its launch vehicles. So, let's get started!

The thrust-to-weight ratio, or TWR, is a fundamental metric that measures an engine's efficiency and power. It's calculated by dividing the engine's thrust force by its weight. A higher TWR indicates a more powerful engine with better performance. Let's take a look at the numbers. The Merlin 1D engine, powering the Falcon 9, has a TWR of approximately 144:1, with a thrust force of 845 kN (190,000 lbf) and a dry mass of 2,300 kg (5,000 lb). Not bad for a first-generation engine! 🔍

Now, let's switch gears to the Raptor engine, which will power the Super Heavy booster. With a TWR of around 180:1, the Raptor boasts an impressive 2,300 kN (520,000 lbf) of thrust force and a relatively low dry mass of around 4,400 kg (9,700 lb). This significant improvement in TWR is thanks to the Raptor's advanced design and materials. For example, the engine features a full-flow staged combustion cycle, which allows for a more efficient use of fuel and a higher combustion pressure. This results in a higher specific impulse and a greater thrust-to-weight ratio. 🚀

To put this into perspective, the Raptor engine will produce about 3.5 times more thrust than the Merlin 1D engine while weighing only about 1.9 times more. This means that the Super Heavy booster will have a significantly higher payload capacity and a more efficient launch process. The Raptor's improved TWR will also enable SpaceX to achieve faster ascent rates and a higher reusability of the booster stages.

In conclusion, the Raptor engine's improved thrust-to-weight ratio compared to the Merlin engine is a testament to SpaceX's innovative approach to rocket engineering. With its advanced design and materials, the Raptor is poised to revolutionize the space industry and enable faster, more efficient, and more sustainable access to space. 🚀

#SpaceX #RaptorEngine #MerlinEngine #ThrustToWeightRatio #RocketEngineering

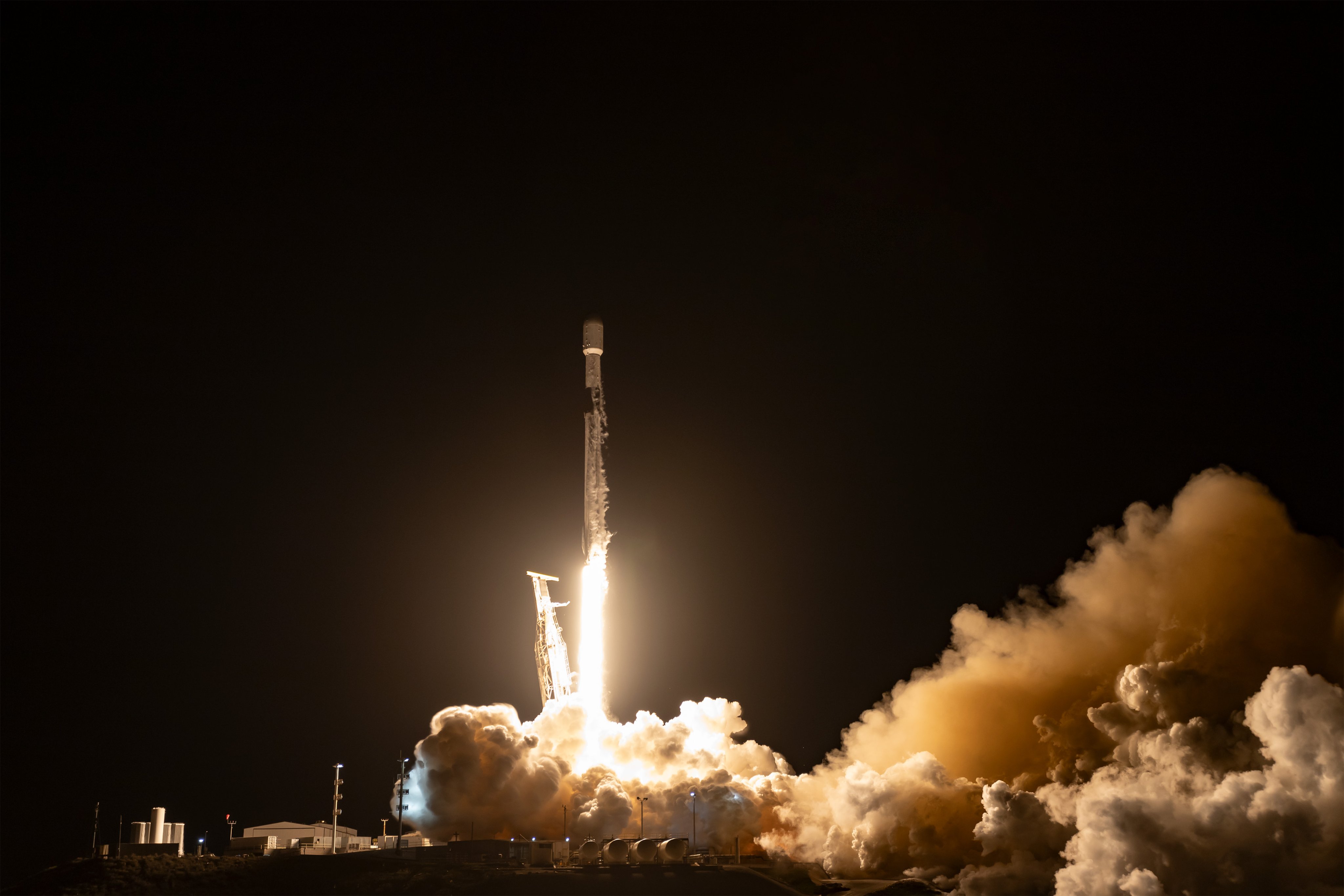

image credit: SpaceX
